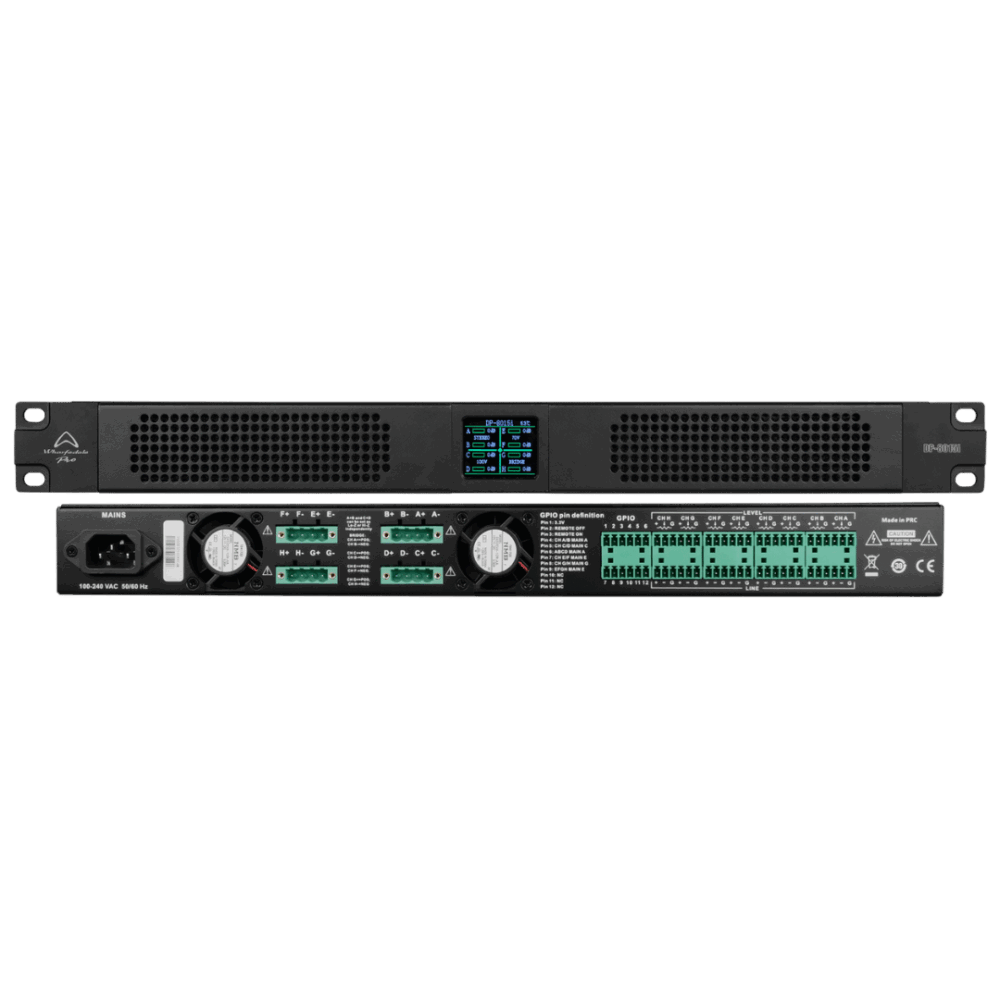

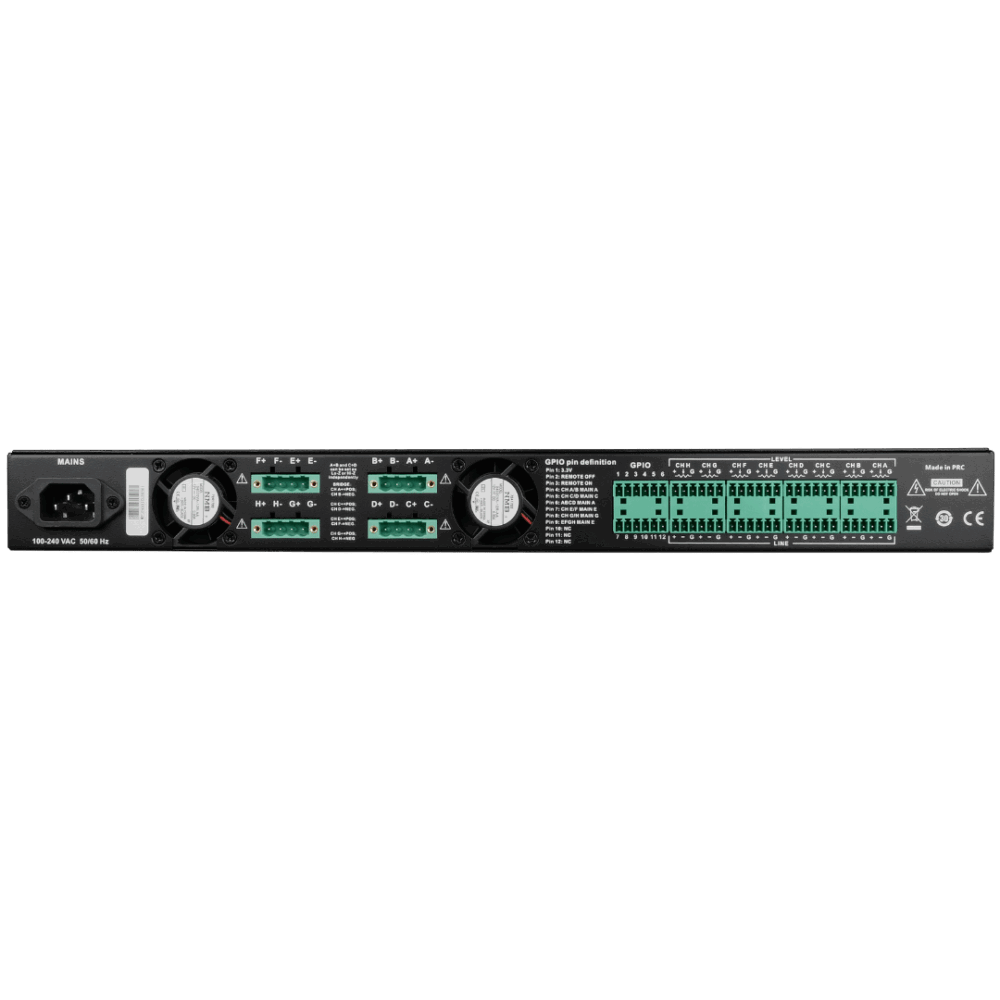

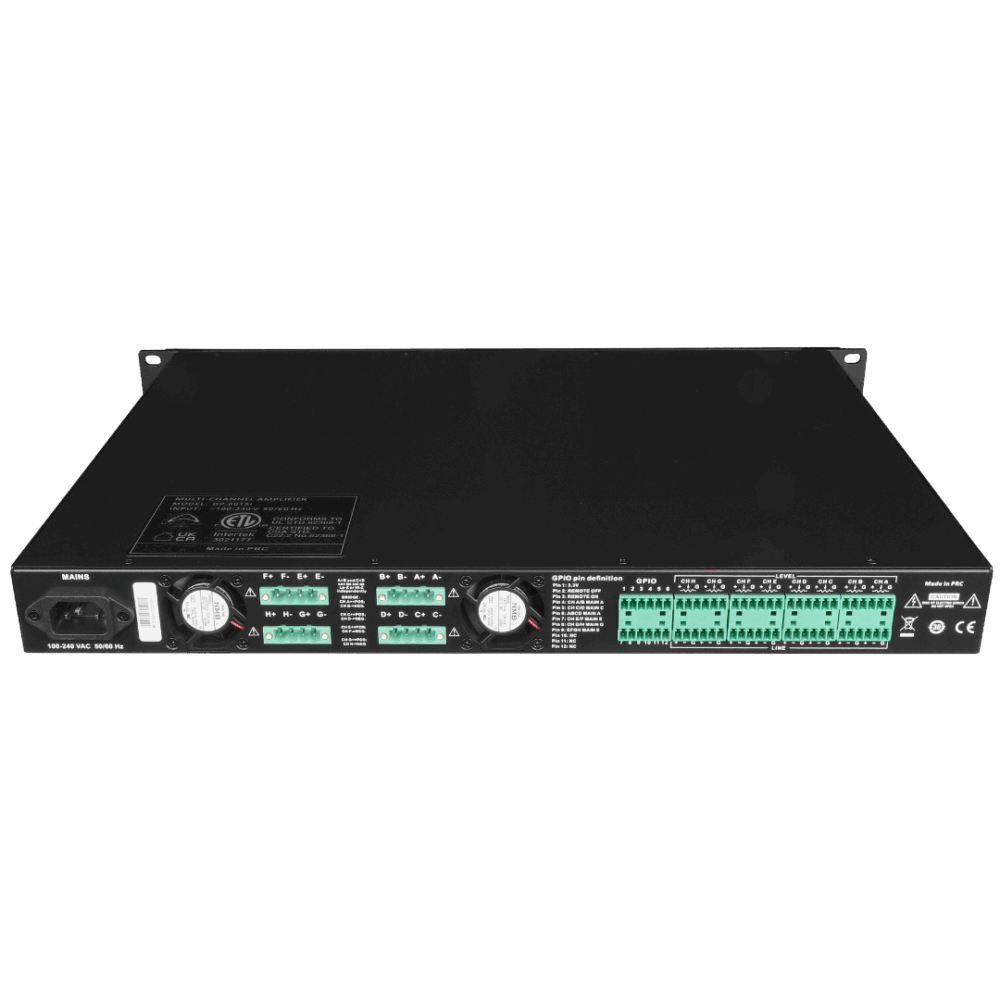

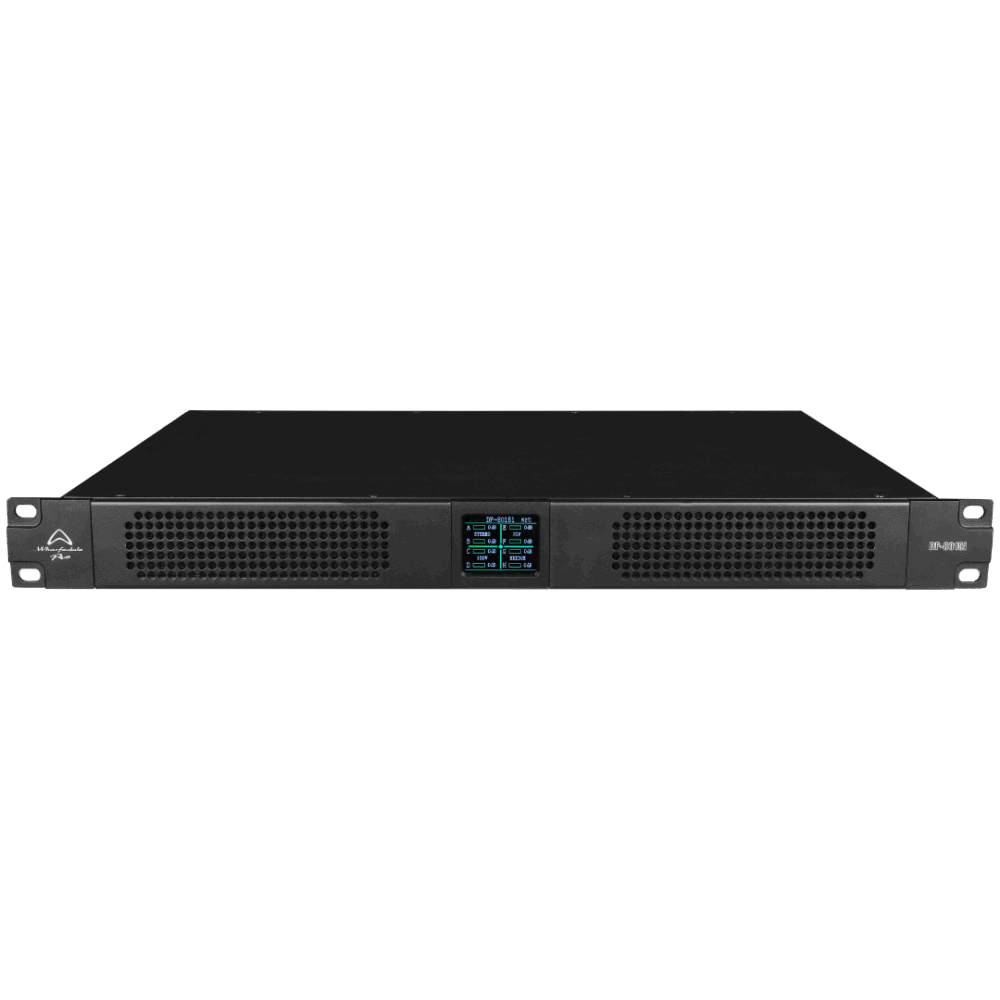

The Wharfedale Pro DP-8015i Amplifier is an 8-channel amplifier from our DP-i Series, engineered for professional fixed installations requiring flexible routing, reliable performance and intuitive control. Delivering 150 W per channel across low-impedance (2–8 Ω) and high-impedance (70 V/100 V) systems, it can also operate in Bridge mode for up to 4 x 300 W, offering outstanding adaptability for complex multi-zone setups. A 1.8″ colour display on the front panel provides quick access to system status and configuration, while a removable grille allows for easy maintenance and a clean, professional appearance. Equipped with GPIO functionality for remote control and linking, along with Phoenix connectors for inputs, outputs and remote level adjustment, installation is simple and secure. With built-in protection against overload, short-circuit and thermal faults, the compact 1U DP-8015i delivers dependable power and precision for professional installation environments. Specification Value Amp Channels 8 Topology Class D Stable at 2 Ohms Yes 8Ω 8 x 150 W 4Ω 8 x 150 W 2Ω 8 x 150 W 16Ω Bridged 4 x 300 W 8Ω Bridged 4 x 300 W 4Ω Bridged 4 x 300 W Control GPIO Input Connectors Phoenix MC 1, 5/12-ST-3, 81 Output Connectors Phoenix PC 5/8-STF1-7, 62 Link Connectors Phoenix MC 1, 5/6-ST-3, 81 Mode Switch Lo-Z / Hi-Z / 100 V / 70 V / Mono / Bridge Mode Hi-Z Yes 100V Hi-Z 8 x 150 W 70V Hi-Z 8 x 150 W Input Gain/Sensitivity Switch 0.775 V / 1 V Slew Rate >50 V / us Output RMS Voltage (V) 34.7 V THD N Typical : 0.05% (10% Rated Power, 8 Ω) Crosstalk ≥70 dB (20 Hz-1 kHz, Below Rated Power) Amplifier Frequency Response Lo-Z Typical: ±0.5 dB (10% Rated Power, 20 Hz-20 kHz) Hi-Z Typical: ±0.5 dB (10% Rated Power, 40 Hz-16 kHz) Amplifier Input Impedance 20 kΩ (Balanced), 10 kΩ (Unbalanced) Damping Factor Typical: 300 (20 Hz-200 Hz, Lo-Z, 8 Ω) SNR ≥100 dB (A weighted, 20 Hz-20 kHz, 8 Ω) Protection Under voltage, DC, Over temperature, Limiter, Overload, Short. Main Power 100-240 V AC. ±10%, 50/60 Hz Included Accessory User Manual, 4 x rubber feet, 10 x 6P Plug-in connector, pitch:3.81 mm, 4 x 4P Plug-in connector, pitch: 7.62 mm, AC Power cord Unpacked – Height (mm) 45 Unpacked – Width Front (mm) 483 Unpacked – Width Rear (mm) 483 Unpacked – Depth (mm) 340 Packed – Height (mm) 125 Packed – Width Front (mm) 510 Packed – Width Rear (mm) 510 Packed – Depth (mm) 565 Weight – Nett (Kg) 6 Weight – Gross (Kg) 7.7 DP-8015i – Wharfedale Pro
