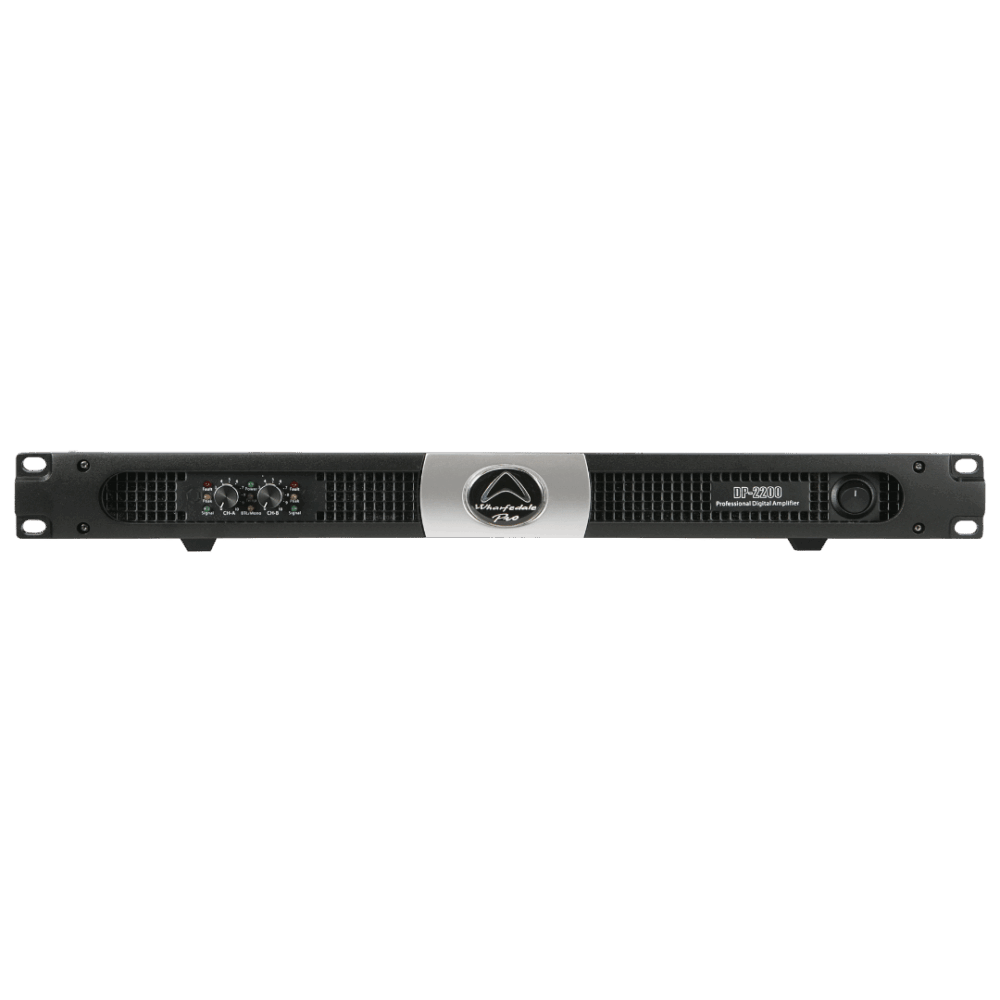

Stable down to 2 Ohms, the Wharfedale Pro DP-2200 Amplifier is a high-power 2-channel amplifier from our DP Series, designed for professional live sound reinforcement and fixed installation applications requiring maximum performance and reliability. Delivering 2000 W per channel at 8 Ω, 3400 W at 4 Ω, and up to 9520 W bridged at 4 Ω, the DP-2200 provides immense headroom while maintaining clarity and control. It features a Class D topology with an advanced switch-mode power supply, ensuring high efficiency, low distortion, and reduced heat output even under demanding conditions. Engineered for both touring and installation, DP-2200 also supports 70 V and 100 V Hi-Z operation, offering flexibility for large distributed systems. With its lightweight 9.3 kg design, the DP-2200 combines power, efficiency and portability — a robust solution for professionals who demand precision and performance. Specification Value Amp Channels 2 Topology Class D Stable at 2 Ohms Yes 8Ω 2 x 2000 W 4Ω 2 x 3400 W 2Ω 2 x 4760 W 16Ω Bridged 1 x 4000 W 8Ω Bridged 1 x 6800 W 4Ω Bridged 1 x 9520 W Input Connectors 2 x XLR Socket Output Connectors 2 x 4 Pole Speaker Connector Link Connectors 2 x XLR Pin Mode Switch Mono / Bridge / Clip Hi-Z Yes 100V Hi-Z 2 x 3400 W 70V Hi-Z 2 x 2400 W Slew Rate >50 V / us Output RMS Voltage (V) 126.5 V Maximum input Level 21 dBu (8.7 Vrms) Default Gain (Rated power, 1 kHz) (dB) 35 dB Gain (Rated Power, 1 kHz) 41 / 38 / 35 / 32 dB THD N Typical : 0.05% (10% Rated Power, 8 Ω) Crosstalk ≥90 dB (20 Hz-1 kHz, Below Rated Power, 8 Ω) Amplifier Frequency Response Typical : 0,-0.5 dB (10% Rated Power, 20 Hz-20 kHz, 8 Ω) Amplifier Input Impedance 20 kΩ (Balanced), 10 kΩ (Unbalanced) Damping Factor ≥1000 (20 Hz-200 Hz, 8 Ω) SNR ≥105 dB (Default Gain, A Weighted, 20 Hz-20 kHz, 8 Ω) Protection Power under-voltage protection, Amplifier output DC protection, Thermal Protection, Temperature Power Control, Overload Power Control Main Power 90~260 V AC,50/60 Hz Included Accessory User Manual Unpacked – Height (mm) 45 Unpacked – Width Front (mm) 483 Unpacked – Width Rear (mm) 483 Unpacked – Depth (mm) 376 Packed – Height (mm) 125 Packed – Width Front (mm) 510 Packed – Width Rear (mm) 510 Packed – Depth (mm) 565 Weight – Nett (Kg) 9.3 Weight – Gross (Kg) 10.8 DP-2200 – Wharfedale Pro
