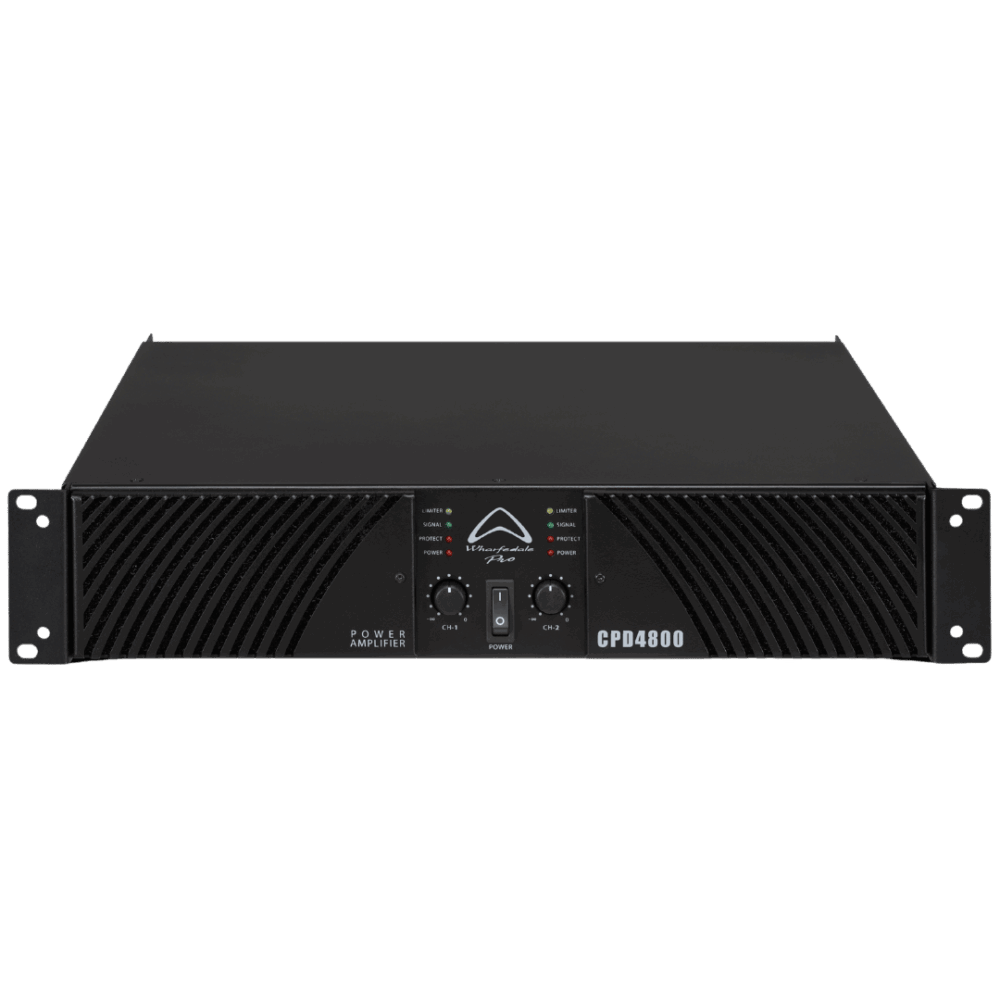

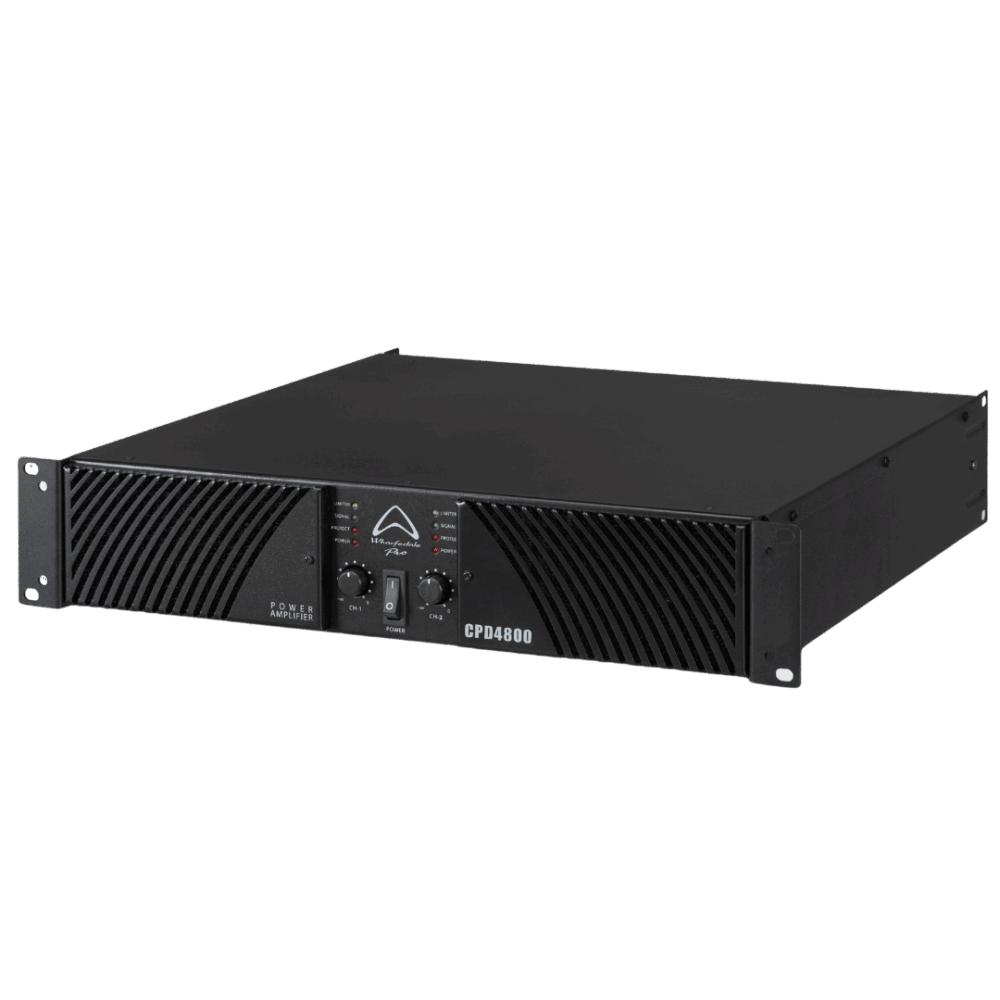

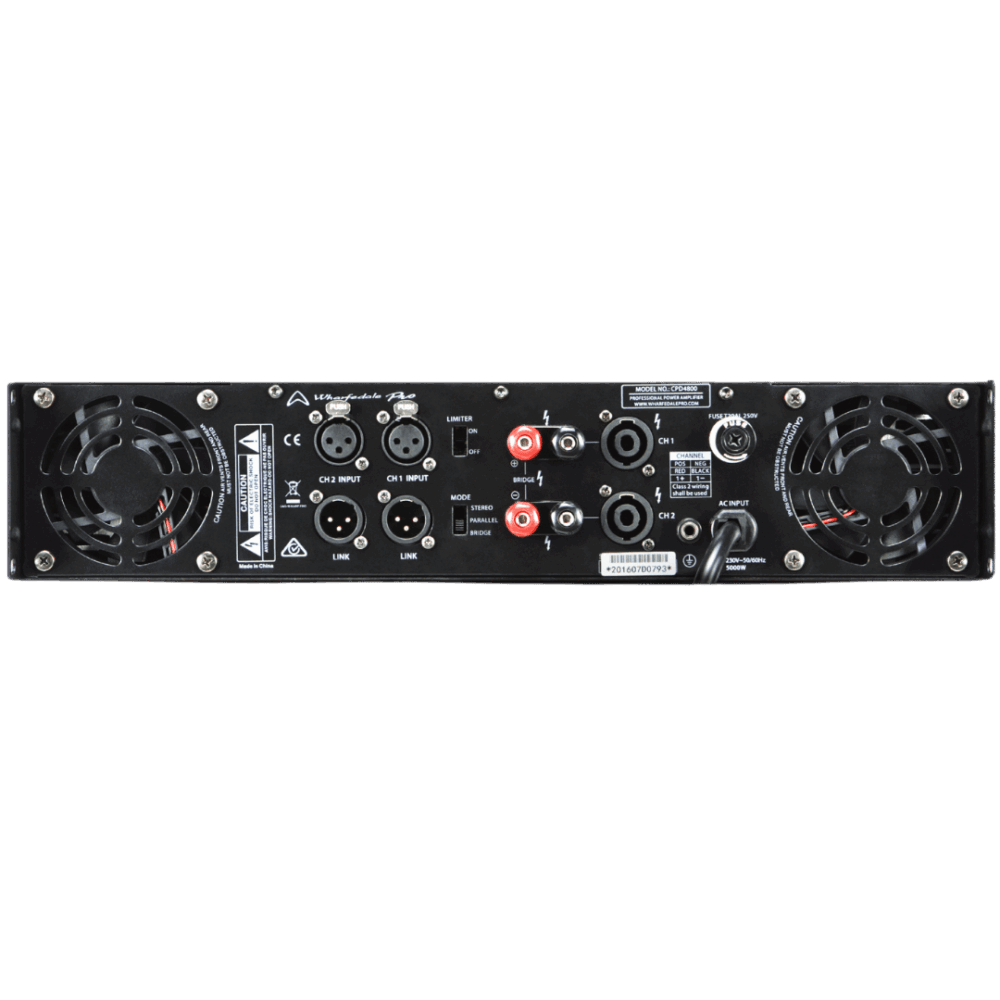

The Wharfedale Pro CPD4800 Amplifier is a 2-channel amplifier from our CPD Series, designed for touring, rental and installation environments that demand maximum power, reliability and ease of maintenance. Delivering 1000 W per channel at 8 Ω, 1500 W at 4 Ω and up to 3000 W bridged at 8 Ω, it uses Class H topology for superior efficiency, reduced heat and consistent performance across demanding applications. A heavy-duty toroidal transformer ensures stable power delivery even in fluctuating AC conditions, while protection circuitry guards against thermal, overcurrent, DC and short-circuit faults. Built for longevity, the CPD4800 includes a removable front grille for quick cleaning of air filters, maintaining optimal cooling in challenging environments. With Stereo, Parallel and Bridge modes, a switchable limiter, variable-speed fans and robust all-steel construction, CPD4800 delivers the dependable power professionals rely on. Specification Value Amp Channels 2 Topology Class H 8Ω 2 x 1000 W 4Ω 2 x 1500 W 8Ω Bridged 1 x 3000 W Input Connectors 2 x XLR Socket Output Connectors 2 x 4 Pole speaker connector, 2 x binding posts Link Connectors 2 x XLR Pin Mode Switch Parallel / Stereo / Bridge Mode / Limiter switch Slew Rate >40 V / us Output RMS Voltage (V) 89.5 V Maximum input Level 22 dBu (9.7 Vrms) Crosstalk <-75 dB Amplifier Frequency Response 20 Hz – 30 kHz Amplifier Input Impedance 20 KΩ Damping Factor > 300 SNR ≥100 Protection Thermal protect, Over-current protect, Output DC protect, Output short protect, Power on/off mute Main Power 110-120 V AC or 100 V AC or 220-230 V AC or 240 V AC ~ 50/60 Hz Included Accessory User Manual Unpacked – Height (mm) 88 Unpacked – Width Front (mm) 483 Unpacked – Width Rear (mm) 483 Unpacked – Depth (mm) 450 Packed – Height (mm) 200 Packed – Width Front (mm) 542 Packed – Width Rear (mm) 542 Packed – Depth (mm) 580 Weight – Nett (Kg) 23.5 Weight – Gross (Kg) 25 CPD4800 – Wharfedale Pro
