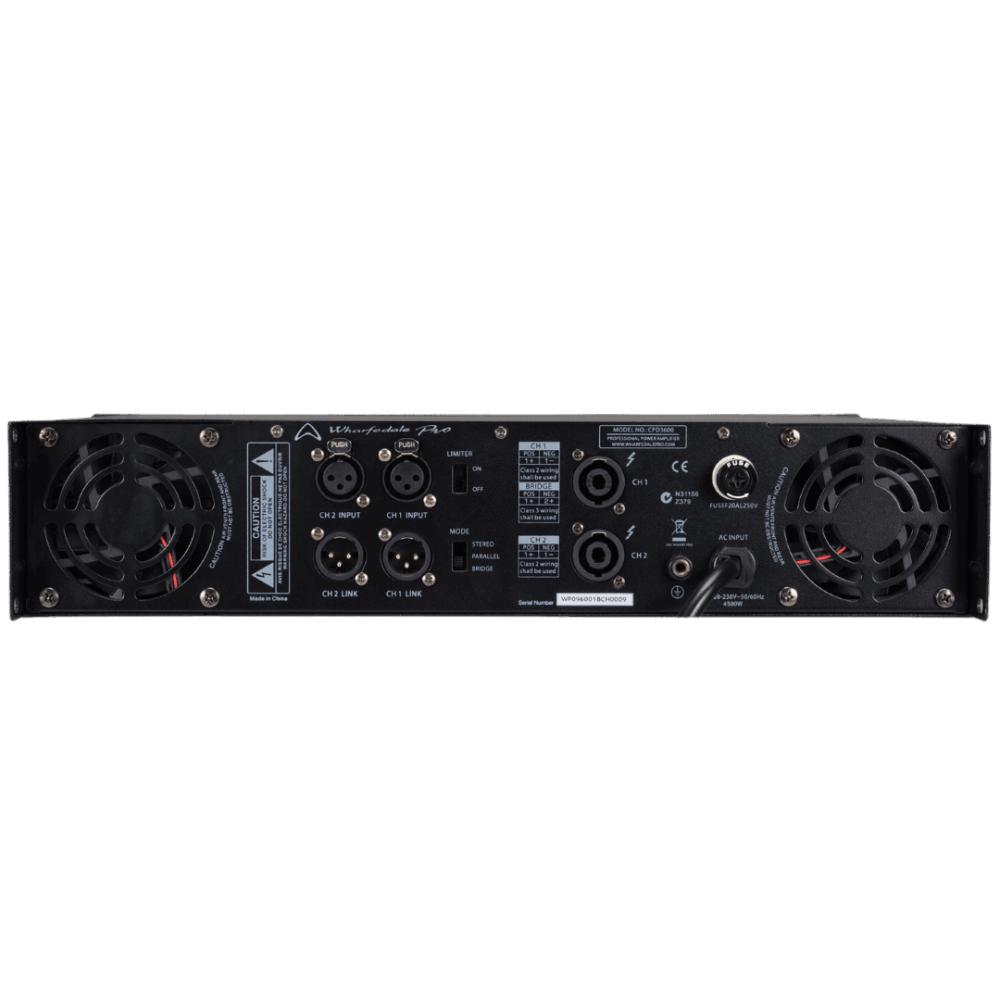

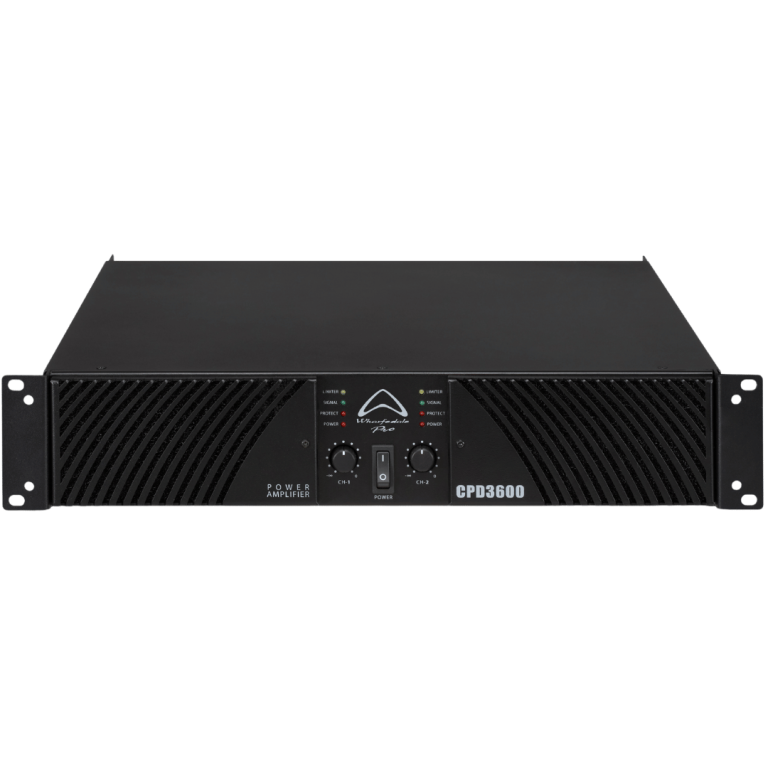

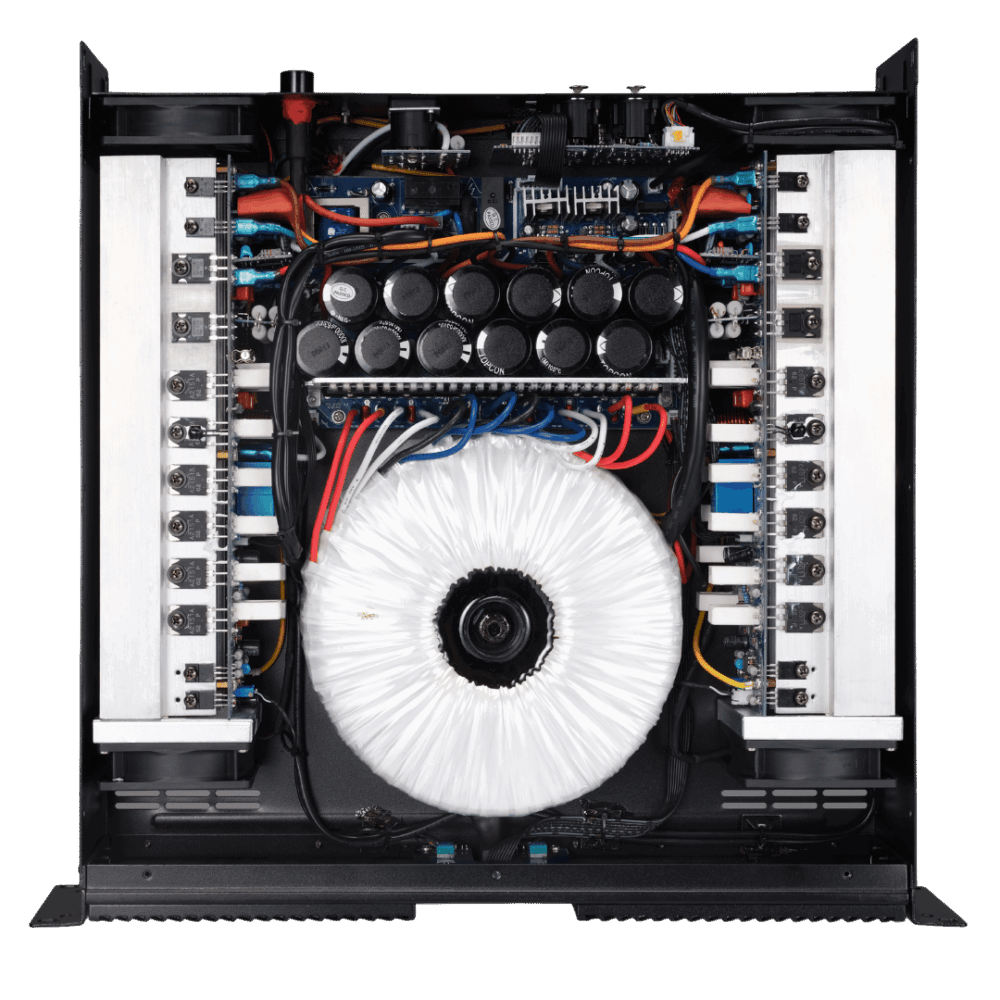

The Wharfedale Pro CPD3600 Amplifier is a 2-channel amplifier from our CPD Series, engineered for touring, rental and installation environments where dependable power and long-term reliability are essential. Delivering 870 W per channel at 8 Ω, 1300 W at 4 Ω and up to 2590 W bridged at 8 Ω, it uses Class H topology to achieve high efficiency and clean, stable performance. A heavy-duty toroidal transformer provides consistent power delivery even under fluctuating AC conditions, while built-in protection circuitry defends against thermal, overcurrent, DC and short-circuit faults. Designed for long-term professional use, the CPD3600 includes a removable front grille for quick cleaning of air filters, ensuring reliable airflow and cooling. With Stereo, Parallel and Bridge modes, a switchable limiter, variable-speed fans and rugged construction, it’s a powerful, road-ready amplifier built for demanding applications. Specification Value Amp Channels 2 Topology Class H 8Ω 2 x 870 W 4Ω 2 x 1300 W 8Ω Bridged 1 x 2590 W Input Connectors 2 x XLR Socket Output Connectors 2 x 4 Pole Speaker Connector Link Connectors 2 x XLR Pin Mode Switch Parallel / Stereo / Bridge Mode / Limiter switch Slew Rate >40 V / us Output RMS Voltage (V) 83.5 V Maximum input Level 22 dBu (9.7 Vrms) Crosstalk <-70 dB Amplifier Frequency Response 20 Hz – 30 kHz Amplifier Input Impedance 20 KΩ Damping Factor > 300 SNR ≥100 Protection Thermal protect, Over-current protect, Output DC protect, Output short protect, Power on/off mute Main Power 110-120 V AC or 100 V AC or 220-230 V AC or 240 V AC ~ 50/60 Hz Included Accessory User Manual Unpacked – Height (mm) 88 Unpacked – Width Front (mm) 483 Unpacked – Width Rear (mm) 483 Unpacked – Depth (mm) 450 Packed – Height (mm) 195 Packed – Width Front (mm) 533 Packed – Width Rear (mm) 533 Packed – Depth (mm) 573 Weight – Nett (Kg) 22 Weight – Gross (Kg) 23.35 CPD3600 – Wharfedale Pro
