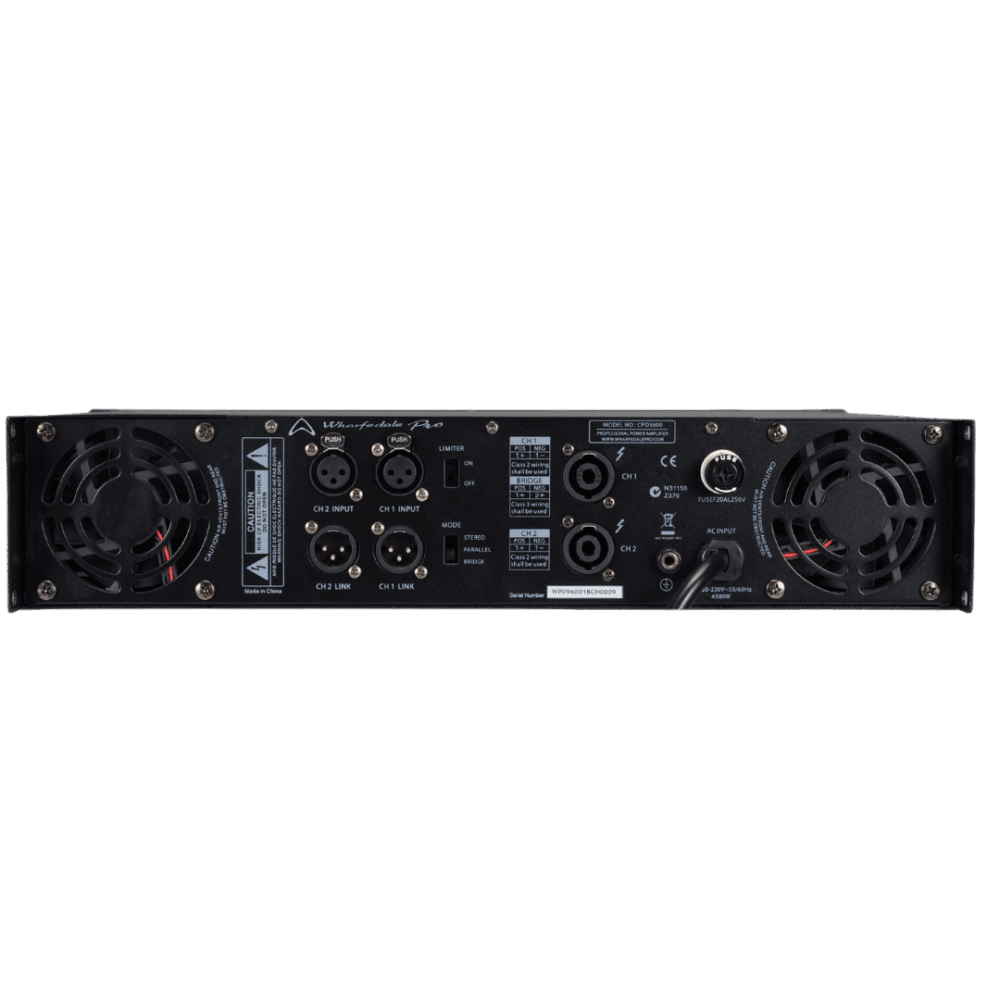

The Wharfedale Pro CPD1600 Amplifier is a 2-channel amplifier from our CPD Series, built for touring, rental and installation environments where reliable Class AB performance and easy maintenance are essential. Delivering 400 W per channel at 8 Ω, 620 W at 4 Ω and up to 1200 W bridged at 8 Ω, it offers clean, consistent power with excellent control and headroom. A heavy-duty toroidal transformer ensures smooth, stable output even when AC supply fluctuates, while comprehensive protection circuitry guards against thermal, overcurrent, DC and short-circuit faults. Designed for long-term reliability, CPD1600 features a removable front grille for quick cleaning of air filters — maintaining airflow and cooling efficiency in tough environments. With Stereo, Parallel and Bridge modes, variable-speed fans and a switchable limiter, CPD1600 is a powerful, dependable amplifier for demanding professional use. Specification Value Amp Channels 2 Topology Class AB 8Ω 2 x 400 W 4Ω 2 x 620 W 8Ω Bridged 1 x 1200 W Input Connectors 2 x XLR Socket Output Connectors 2 x 4 Pole Speaker Connector Link Connectors 2 x XLR Pin Mode Switch Parallel / Stereo / Bridge Mode / Limiter switch Slew Rate >40 V / us Output RMS Voltage (V) 56.6 V Maximum input Level 22 dBu (9.7 Vrms) Crosstalk <-70 dB Amplifier Frequency Response 20 Hz – 30 kHz Amplifier Input Impedance 20 KΩ Damping Factor > 300 SNR ≥100 Protection Thermal protect, Over-current protect, Output DC protect, Output short protect, Power on/off mute Main Power 110-120 V AC or 100 V AC or 220-230 V AC or 240 V AC ~ 50/60 Hz Included Accessory User Manual Unpacked – Height (mm) 88 Unpacked – Width Front (mm) 483 Unpacked – Width Rear (mm) 483 Unpacked – Depth (mm) 330 Packed – Height (mm) 163 Packed – Width Front (mm) 423 Packed – Width Rear (mm) 423 Packed – Depth (mm) 557 Weight – Nett (Kg) 13 Weight – Gross (Kg) 14.21 CPD1600 – Wharfedale Pro
