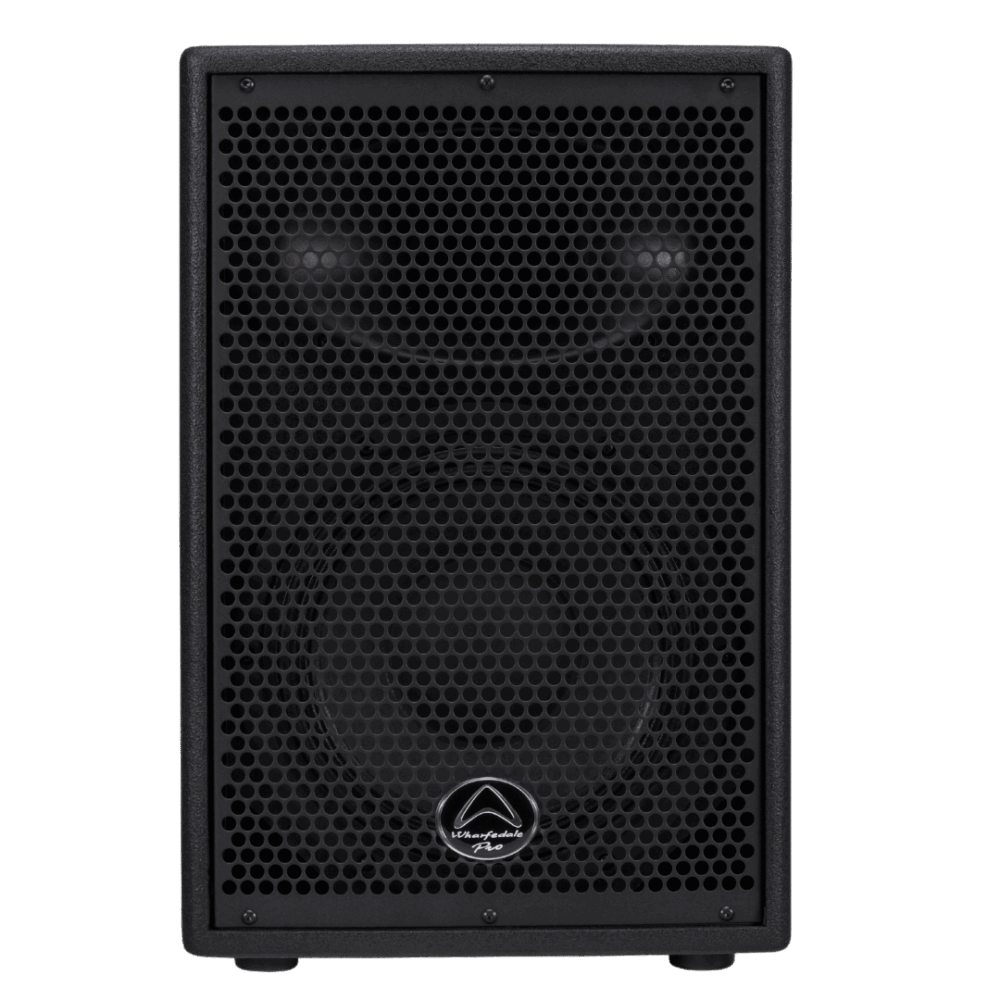

The Wharfedale Pro DELTA-X10 Passive Speaker is a compact yet powerful 10‑inch 2‑way passive loudspeaker designed to deliver real impact in venues or mobile setups. Built from sturdy 15 mm birch plywood coated in durable Tough-Tone paint, it’s made to withstand the bumps and scrapes of life on the road. Flexible by design, the rear panel lets you switch between full‑range passive mode or a bi‑amplified setup for more control over low and high frequencies when you pair it with separate amps. It handles a substantial 300 W continuous (up to 1,200 W peak) and pushes a healthy 128 dB punch. A custom Wharfedale Pro LF driver delivers clean bass, while the compression driver (titanium diaphragm) offers crisp high‑end clarity. With a handy pole socket and side handles, it’s easy to place and move—solid performance in a rugged, compact package. Specification Value Active or Passive Passive System Type Full-Range Configuration 2-way System Continuous Power 300 W System Programme Power 600 W System Peak Power 1200 W Max SPL @ 1m 128 dB Freq Range (-10 dB) 60 Hz – 20 kHz Freq Response ( /-3 dB) 65 Hz – 20 kHz IP Certification None Driver Brand Wharfedale Pro LF Driver Size 10″ LF Voice Coil Size 2.5″ LF Rated Impedance 8 Ω LF Power (RE:AES2-2012) 300 W HF Driver Type Compression Driver HF Voice Coil Size 1.75″ HF Diaphragm Material Titanium HF Exit Size 1″ HF Power (RE:AES2-2012) 40 W HF Rated Impedance 8 Ω HF Nominal Coverage (H x V) 90° x 60° Preset Yes Input Connector 2 x 4 Pole Speaker Connector Waveguide Type Elliptical Enclosure Material Birch Plywood Grille Material and Finish Steel Black or White Finish Black or White Tough-Tone paint Handles 2 Deployment Flying, Ground, Pole Pole Mount Dual Angle (0° / 10°) 35 mm Rigging Yes M10 6 Sensitivity 2.83v / 1m 97 dB System Rated Impedance 8 Ω Crossover Frequency 2.8 kHz Recommended HPF = BW 18 dB/OCT. 60 Hz EQ Type None Included Accessory User Manual Unpacked – Height (mm) 500 Unpacked – Width Front (mm) 338 Unpacked – Width Rear (mm) 212 Unpacked – Depth (mm) 330 Packed – Height (mm) 575 Packed – Width Front (mm) 400 Packed – Width Rear (mm) 300 Packed – Depth (mm) 386 Weight – Nett (kg) 16.58 Weight – Gross (kg) 19.6 DELTA-X10 – Wharfedale Pro
