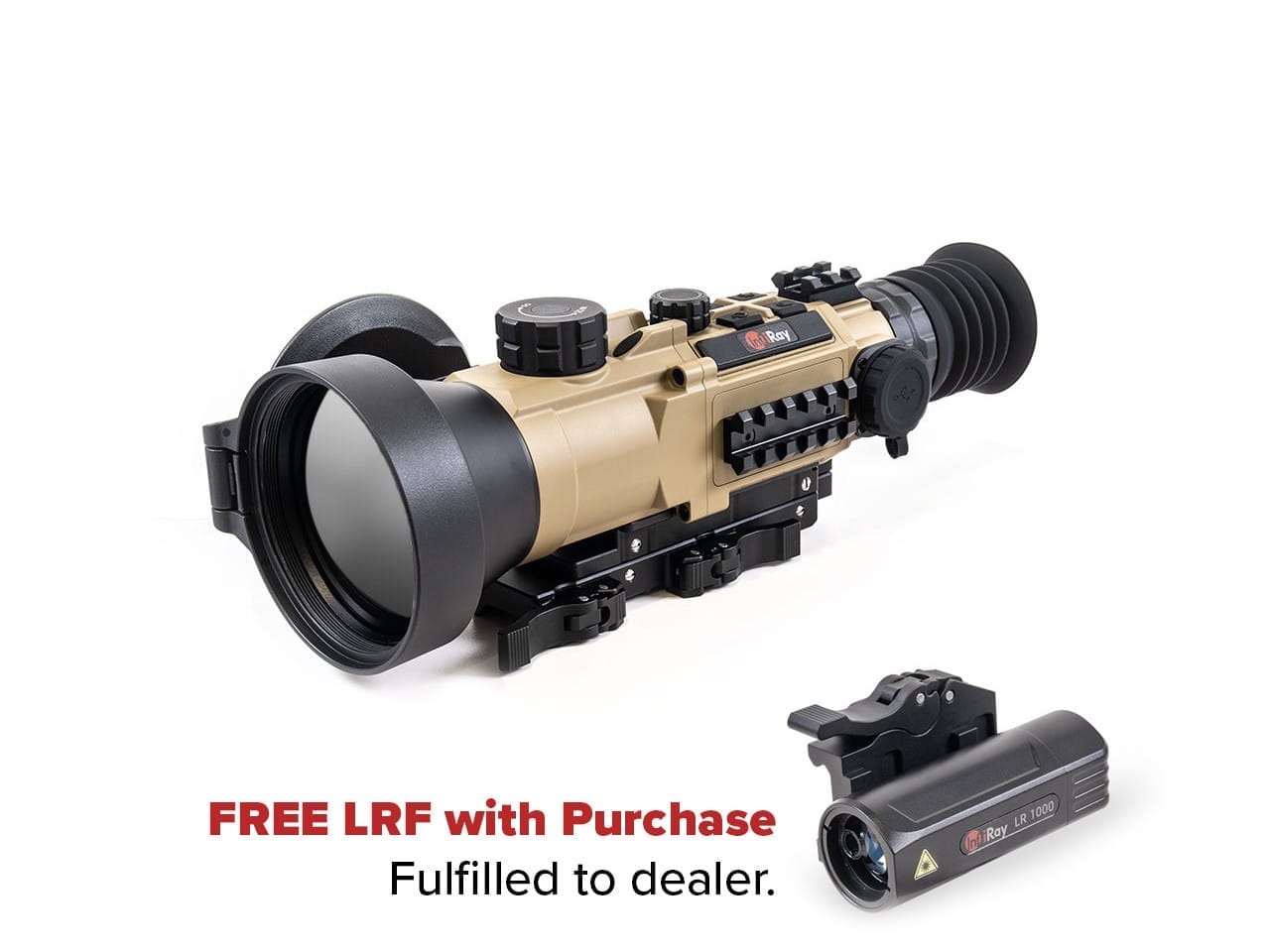

Description The InfiRay Outdoor RICO HYBRID fuses the capabilities of a thermal clip-on and a thermal weapon sight to create a new breed of thermal device. The HYBRID gives you never-before-seen versatility and performance, boasting a 3,600 yard detection range as a dedicated thermal sight, or compatibility with day optics up to 10× as an inline clip-on sight. The combination of the HYBRID’s low-distortion orthoscopic eyepiece and a 1.03-inch large-format 2560×1920 display provides comfortable viewing as a dedicated sight while still maintaining the pixel density and resolution for use as a clip-on optic. The HYBRID also unlocks advanced features such as compatibility with a 1,000 yard laser rangefinder, a custom reticle generator, Bluetooth remote, and an onboard ballistic solver. The ILR-1000-2 Laser Rangefinder (AC82) connects to the HYBRID via USB-C (data and power), providing real-time ranging data that can even integrate with user-supplied ballistics data and apply hold-over on a custom reticle. See page 45 for details. PLEASE NOTE: The HYH50W and HYH75W both use a IBP-1 type battery (4400mAh). THE IBP-1 battery that ships with the HYH50W is the same battery used by the RICO Mk1 and RICO Pro Series. The battery that ships with the HYH75W is an enhanced IBP-1 that features the FDE ceramic coated finish and improved ingress protection. The HYH75W will run on the original IBP-1 battery, but will not be IP67 weatherproof in this configuration. For best results, always use the batteries that shipped with the product. Features & Performance Power Source USB-C External, IBP-1H Li-ion Battery Pack Reticle 9 (7 Static, 1 DIY, 1 BDC) Color Palettes White Hot, Black Hot, Red Hot, Iron Red, Rainbow, Outline Rangefinder ILR-1000-2 LRF (Optional/Not Included) Stand-by Mode Yes One-Shot Zero Yes Picture-in-Picture Yes Wifi Yes Image Capture Yes Mobile App Yes User-Updatable Firmware Yes Connector Type USB-C Connector Output Power/Data Onboard Recording Yes Storage Capacity 64GB Run Time 6 External Power Source USB-C Warranty 5 Years Startup Time <10 Seconds, Instant from Standby Country of Manufacture China Environmental Specifications Operating Temperature Range -4°F~122°F Ingress Protection IP67 Recoil Rating 1000 g/s² (300 Win./7mm Mag) Physical Weight 45.08 Oz. Height 3.58 Width 4.13 Length 12.20 Housing Material Magnesium Alloy Mounting Interface Picatinny MIL-STD 1913 Rail Sensor Specifications Device Technology Thermal Imaging Sensor Type InfiRay MICRO II Sensor Resolution 640×512 Sensor Pixel Size 12μm Sensor Frame Rate 50hz Thermal Sensitivity <25mk Non-Uniformity Correction (NUC) Manual, Automatic, Semi-Automatic Optics Objective Focal Length 75mm Detection Range 3600 Yards Optical Magnification 4X Digital Magnification 8X Objective Lens Material Germanium Horizontal Angular Field of View 5.9° Vertical Angular Field of View 4.4° Objective Diameter 75mm Objective F# 1.0 Focusing Mechanism Manual Focus Eye Relief 60mm Diopter Range -4 to 2 Display Type AMOLED Display Resolution 2560×1920 Features & Performance Power Source USB-C External, IBP-1H Li-ion Battery Pack Reticle 9 (7 Static, 1 DIY, 1 BDC) Color Palettes White Hot, Black Hot, Red Hot, Iron Red, Rainbow, Outline Rangefinder ILR-1000-2 LRF (Optional/Not Included) Stand-by Mode Yes One-Shot Zero Yes Picture-in-Picture Yes Wifi Yes Image Capture Yes Mobile App Yes User-Updatable Firmware Yes Connector Type USB-C Connector Output Power/Data Onboard Recording Yes Storage Capacity 64GB Run Time 6 External Power Source USB-C Warranty 5 Years Startup Time <10 Seconds, Instant from Standby Country of Manufacture China Environmental Specifications Operating Temperature Range -4°F~122°F Ingress Protection IP67 Recoil Rating 1000 g/s² (300 Win./7mm Mag) Physical Weight 45.08 Oz. Height 3.58 Width 4.13 Length 12.20 Housing Material Magnesium Alloy Mounting Interface Picatinny MIL-STD 1913 Rail Sensor Specifications Device Technology Thermal Imaging Sensor Type InfiRay MICRO II Sensor Resolution 640×512 Sensor Pixel Size 12μm Sensor Frame Rate 50hz Thermal Sensitivity <25mk Non-Uniformity Correction (NUC) Manual, Automatic, Semi-Automatic
