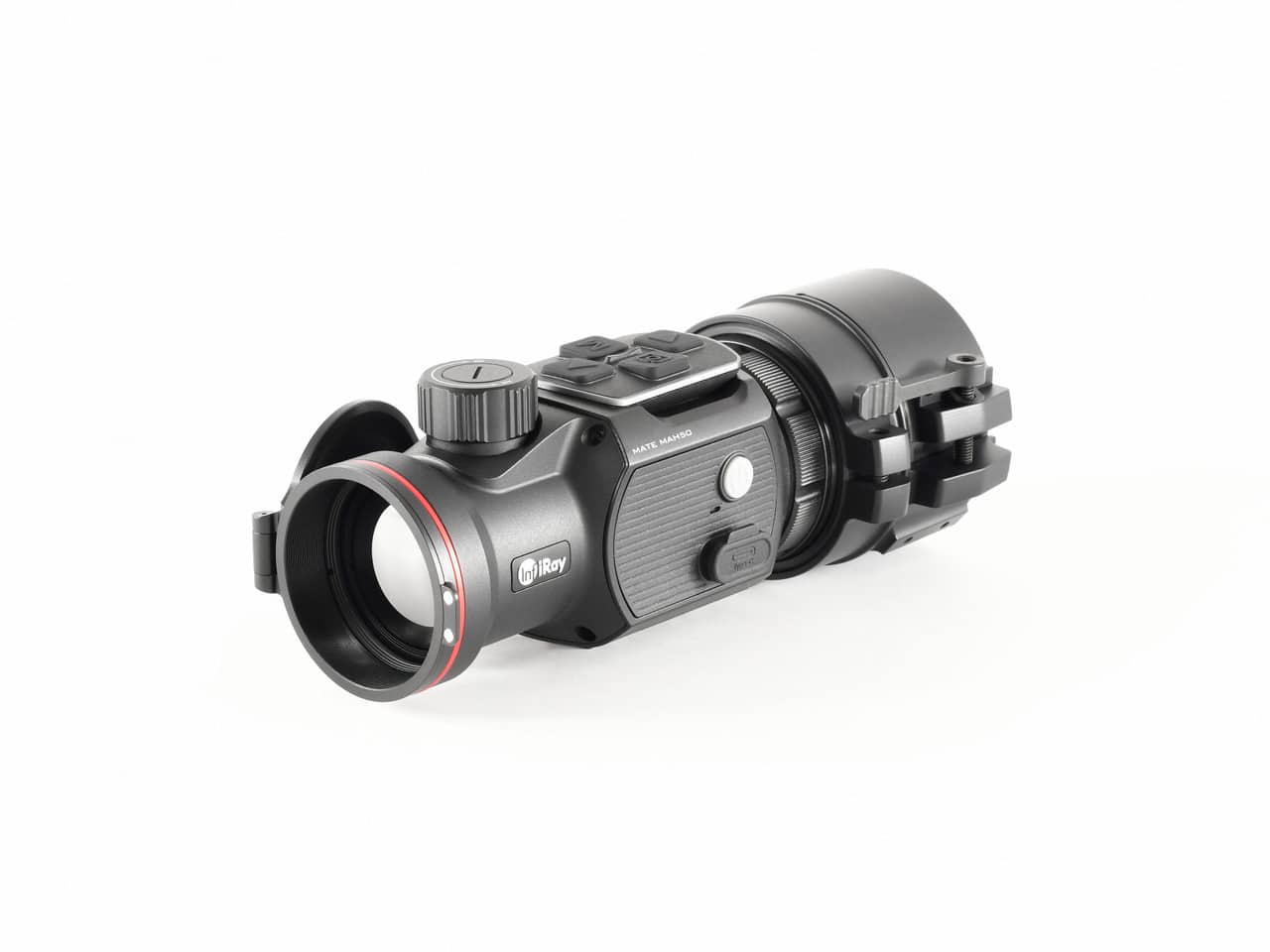

Description The InfiRay Outdoor MATE Series thermal clip-on brings an all-new level of versatility to your existingday scope. With a high-performance 12 μm detector, magnesium alloy housing, distortion-free display, and removable control pad, the MATE series ensures a precise and repeatable transition when dayturns to night. The MATE can be mounted directly to the objective of your day scope or be attached via MIL-STD-1913 Picatinny rail. Optics Objective Focal Length 50mm Detection Range 2400 Yards Objective Lens Material Germanium Optical Magnification 1X Digital Magnification 8X, stepped Focusing Mechanism Manual Focus Display Type AMOLED Vertical Angular Field of View 6.6° Horizontal Angular Field of View 8.8° Objective F# 1.1 Objective Diameter 50mm Display Resolution 1024×768 Features & Performance Wifi Yes Image Capture Yes Mobile App Yes Connector Output Power/Data Connector Type USB-C Video Output Analog RS-170/NTSC Onboard Recording Yes Warranty 5 Years Startup Time Under 10 Seconds Rangefinder ILR-1200-2 LRF (Optional/Not Included) Color Palettes White Hot, Black Hot, Red Hot, Color Storage Capacity 32GB User-Updatable Firmware Yes Power Source Built-In Battery Pack (4 Hours),IBP-4 Power Bank (6 Hours) Stand-by Mode Yes External Power Source USB-C Country of Manufacture China Environmental Specifications Recoil Rating 1000 g/s² (300 Win./7mm Mag) Operating Temperature Range -4°F~122°F Ingress Protection IP67 Physical Mounting Interface Picatinny STD-1913 rail Housing Material Magnesium Alloy Weight 18.70 Height 2.83 Width 2.44 Length 5.75 Sensor Specifications Sensor Type InfiRay MICRO II Sensor Pixel Size 12μm Thermal Sensitivity <25mk Non-Uniformity Correction (NUC) Manual, Automatic, Semi-Automatic Spectral Response 8-12 Microns Sensor Frame Rate 50hz Device Technology Thermal Imaging Sensor Resolution 640×512
