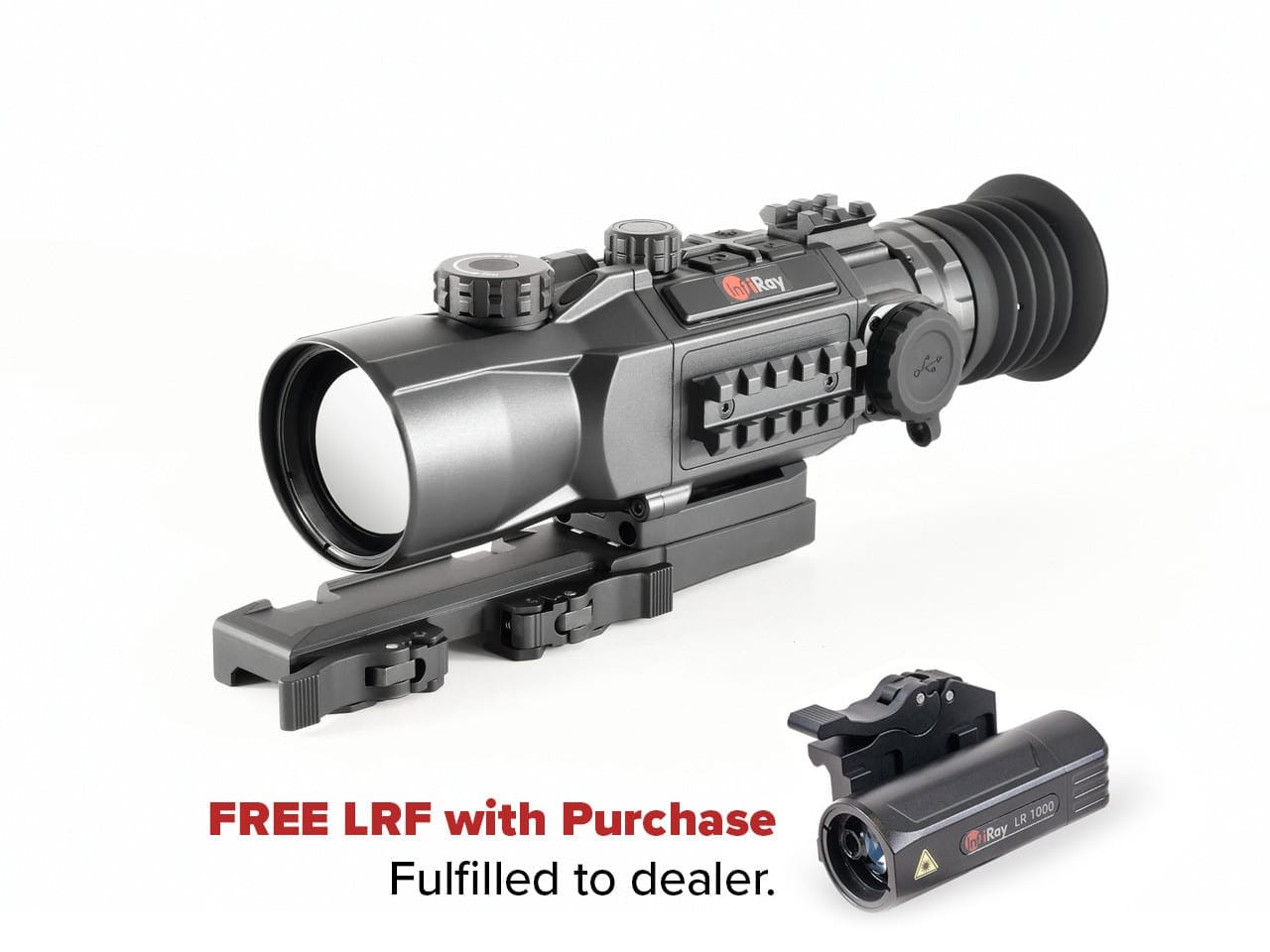

Description The RICO HYBRID fuses the capabilities of a thermal clip-on and a thermal weapon sight to create a new breed of thermal device. This new HYBRID breed gives you never-before-seen versatility and performance boasting a 2,400 yard detection range as a dedicated thermal sight or an inline clip-on sight with day optics up to 10X. The combination of the HYBRID’s low-distortion orthoscopic eyepiece paired with a 1.03” 2560×1920 UHD display allows for an extra large sight picture with edge to edge clarity. The HYBRID’s extra large sight picture is comfortable viewing as a dedicated sight, and still maintains the pixel density and resolution for use as a clip-on optic. The HYBRID also unlocks advanced new features such as compatibility with a 2,000 yard laser rangefinder, a custom reticle generator, bluetooth, and an onboard ballistic solver. Ballistic Solver The HYH50W supports ballistic calculation via a user-uploaded .xlsx file. Calculate your ballistics with your prefered software, then export and upload your trejectory in 5 meter increments. Once you have a balistic profile loaded, plug in the ILR-2000 laser rangefinder and the HYBRID can calculate your drop and display a second reticle in split second. Optics Objective Focal Length 50mm Detection Range 2400 Yards Objective Lens Material Germanium Optical Magnification 3X Digital Magnification 8X, stepped Focusing Mechanism Manual Focus Display Type AMOLED Vertical Angular Field of View 6.6° Horizontal Angular Field of View 8.8° Objective F# 1.1 Objective Diameter 50mm Eye Relief 60mm Diopter Range -4 – 2 Display Resolution 2560×2560 Features & Performance Mobile App Yes Wifi Yes Image Capture Yes Connector Type USB-C Video Output Analog RS-170/NTSC Connector Output Power/Data Onboard Recording Yes Warranty 5 Years Reticle 8 (7 Static, 1 Custom BDC Reticle) Color Palettes White Hot, Black Hot, Red Hot, Iron Red, Rainbow, Outline Rangefinder ILR-2000 LRF (Optional/Not Included) Picture-in-Picture Yes Storage Capacity 64GB User-Updatable Firmware Yes One-Shot Zero Yes Stand-by Mode Yes Power Source Built-In Battery Pack (4 Hours),IBP-4 Power Bank (6 Hours) Run Time 6 External Power Source USB-C Startup Time Under 10 Seconds Country of Manufacture China Environmental Specifications Recoil Rating 1000 g/s² (300 Win./7mm Mag) Operating Temperature Range -4°F~122°F Ingress Protection IP67 Physical Mounting Interface Picatinny STD-1913 rail Height 2.99 Width 3.03 Length 11.02 Housing Material Aluminum Weight 40.5 Sensor Specifications Device Technology Thermal Imaging Sensor Type InfiRay MICRO II Sensor Pixel Size 12μm Thermal Sensitivity ≤25mK Non-Uniformity Correction (NUC) Manual, Automatic, Semi-Automatic Spectral Response 8-12 Microns Sensor Frame Rate 50hz Sensor Resolution 640×512
