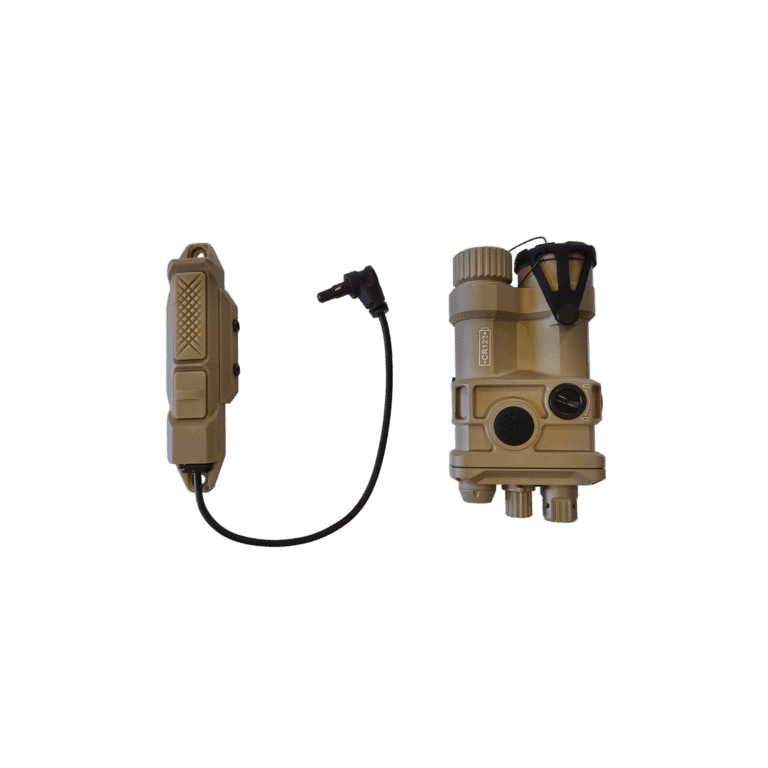

Description The LS-M6TR is a three-in-one laser aiming module that has: Visible green laser Invisible IR laser Invisible IR illuminator with adjustable beam width The LS-M6TR is an improved version of the LS-M6 that has a more convenient activation button, Crane plug compatibility, smaller size, and lower weight. The visible laser, IR laser and IR illuminators are all co-aligned, making zeroing easy. The IR illuminator features a perfectly circular and uniform beam pattern and is adjustable for beam width to suit a wide variety of engagement distances, visible out to 2000m . The LS-M6TR is full aluminum, hard-coat anodized, features an integral recoil lug, is tightened by a robust clamp with a Torx head, and is rated for recoil up to 1200G. Output Specifications: Green Laser (Wavelength) – 520nm Green Laser (Power – Low/High) – 3mw/10mW IR Laser (Wavelength) – 830nm IR Laser (Power – Low/High) – 0.7mW/5mW IR Illuminator (Wavelength) – 830nm IR Illuminator (Power – Low/High) – 5mW/30mW Our version features more intuitive US-Style Markings: AL – Aim Low (Low Power Vis Laser) (activate High-Power visible laser by triple-tapping the fire button) IL – IR Illuminator Low DL – Dual Low (Low Power IR Laser & Illuminator) AH – Aim High (Hi-Power IR Laser) IH – IR Illuminator High DH – Dual High (Hi-Power IR Laser & Illuminator) Output Specifications: Specifications: Battery Type 1x CR123A Dimensions (in) 4.01 x 2.24 x 1.45 Weight (oz) 7.51 Working Temperature -20C -> 55C Waterproof IP68 Recoil Rating >1200G Box Contents: LS-M6TR Remote Switch with Crane plug (Picatinny mount) Lens pen Black carrying bag Lens cleaning cloth Tools & manual
