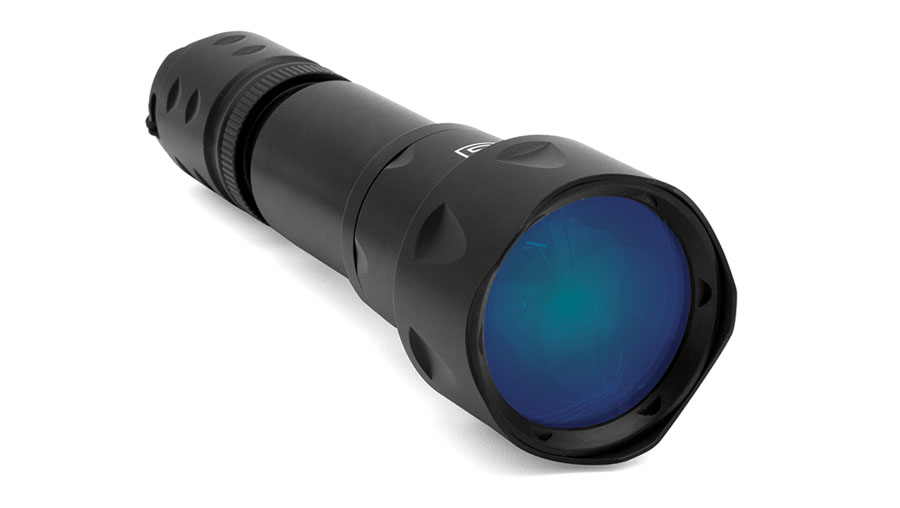

E1™ IR Illuminator MSRP: $175 OVERVIEW | BROCHURES, MANUALS, FIRMWARE OVERVIEW | BROCHURES, MANUALS, FIRMWARE [ OVERVIEW ] E1™ Infrared Illuminator is an advanced high-power unit designed for long-range illumination containing top level features: High power long-range VCSEL illuminator Superb flat far-field optical system with Fresnel lens Constructed from aircraft grade hard anodized finished aluminum Waterproof and shockproof Four modes operation on a single switch – Low/Medium/High/Off 30mm mounting ring included Remote switch included Size: 5.5” x 1.8” x 1.8” Weight: 5.6oz Field-of-View: from 3° to 14° Wavelength: 860nm or optionally 805nm or 905nm IR Source: VCSEL array Optics: Custom Fresnel lens Battery: 18650 or 2 x CR123 Environment: IR67 Shockproof: Yes Mounting: 30mm ring Control: On/Off switch and remote switch [ BROCHURES, MANUALS, FIRMWARE ] E1™ brochure Home » Products » E1™ IR Illuminator
