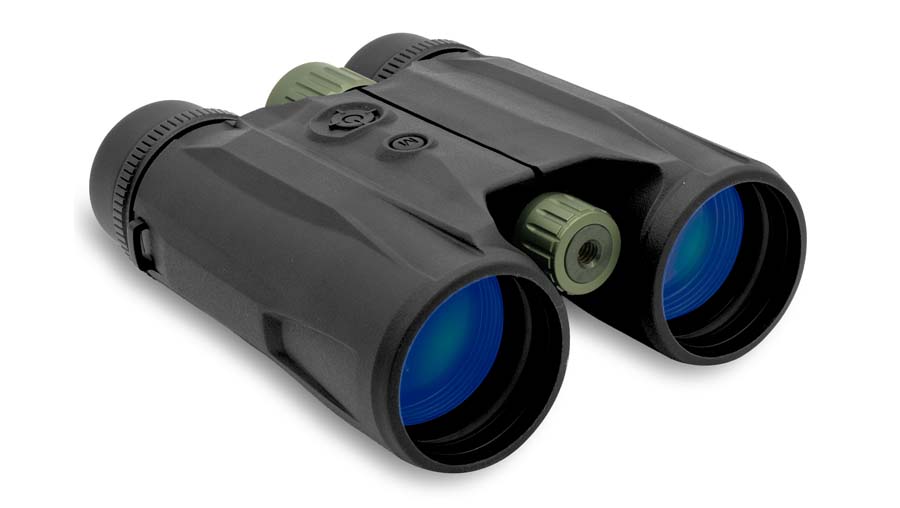

B5™ LRF Binoculars Accurate Distance Measurement OVERVIEW | BROCHURES, MANUALS, FIRMWARE OVERVIEW | BROCHURES, MANUALS, FIRMWARE [ OVERVIEW ] “One touch” operation Easy-to-read display Three modes of ranging: M1 – Linear mode M2 – Horizontal mode M3 – Vertical mode Super accurate ranging at distances up to 3 km High Definition optics w/ ED Red film/Non-ED Green film Eye-safe Class I laser; Magnesium alloy/steel body Waterproof IP67/IP65 B5 LRF10 x 42 Magnification: 10x Objective Lens Diameter: 42 mm Objective: 4E/4G Eyepiece: 5E/3G Lens Coating: FMC Focus System: Center Eye Relief: 15.5 mm Exit Pupil Distant: 18 mm Field-of-View: 6.1° F.O.V at ft/1000 yds: 321 F.O.V at m/1000 m: 107 Min. Focus Distance: 6 m Twilight Index: 21.2 B5 LRF10 x 45 Relative Brightness: 20.25 Diopter Adjustment: ±5D Interpupillary Distance: 56-76 mm Weatherproof: Yes Waterproof: 1 m/30 min Nitrogen Filled: Yes Twist Eyecaps: Yes Size: 146 x 111 x 57 mm Weight: 810 g Body Material: Magnesium Measuring Range: 3000 m ±.5 m Repetitive Rate: ≤200 m, ±1 m ; ≥200 m, ±0.5% m Battery Use: CR2 [ BROCHURES, MANUALS, FIRMWARE ] B5™ brochure Home » Products » B5™ LRF Binoculars
