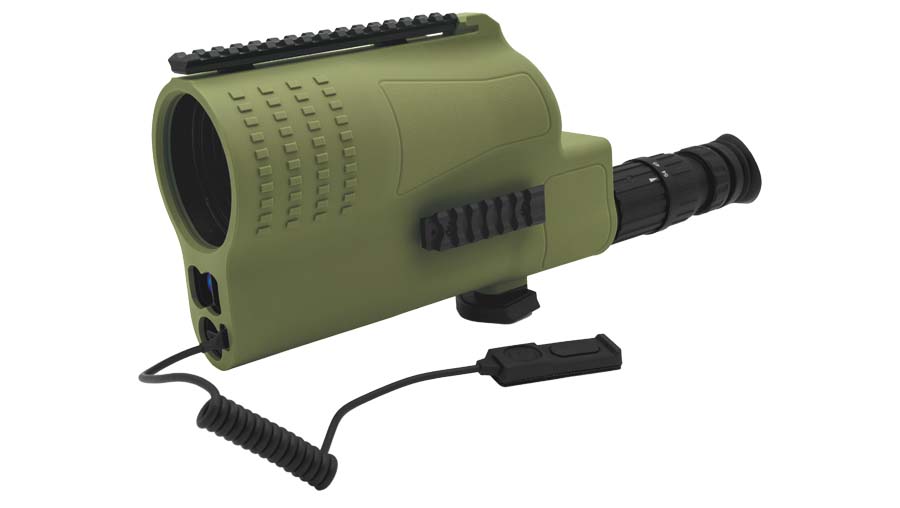

S1LRF™ Spotter Scope OVERVIEW | BROCHURES, MANUALS, FIRMWARE OVERVIEW | BROCHURES, MANUALS, FIRMWARE [ OVERVIEW ] S1LRF™ is now built-in with S1 Spotting scope, making a perfect system for long-range shooting sports and similar spotting applications.S1™ ID™ is a unique Spotting Scope with Internal Display. Display is overlaying reticle located at first focal place and will provide information overlaying the viewable image. Data shown can enhance reticle, display external LRF information or show communication feeds directly on the internal display. Magnification 18–54x continuous Front Lens Diameter 72mm Exit Pupil 4-1.3mm Eye Relief 26.7-19.9mm (1.1-0.8”) FOV at 1000m 52-19m (157-58ft) Field-of-View 3° – 1.11° Diopter Adjustment /-3 diopters Transmission 85% Reticle Multi-level Reticle Illumination Red, variable intensity 1-7 Size 343 x 82 x 160mm (13.5 x 3.6 x 6.3”) Weight 1350g (48oz) Front Filter Thread M80 x 0.5 Tripod Connection 3/8” thread w/ locking pin, adapter for 1/4 x 20” Optical Resolution 4” – 2” Storage Temperature -40°C to 70°C Operating Temperature -40°C to 50°C Environmental IP67 waterproof Internal Display Monochrome Red OLED Display Interface Special USB C Power supply External power via USB C LRF Range Accuracy 3000 yds/m -1 yd/m Metric/Imperial Yes, selected Laser 1550 nm, eye safe Class I Measuring Time Remote Control Included Power 18650 rechargeable battery [ BROCHURES, MANUALS, FIRMWARE ] S1LRF™ brochure Home » Products » S1LRF™ Spotter Scope
